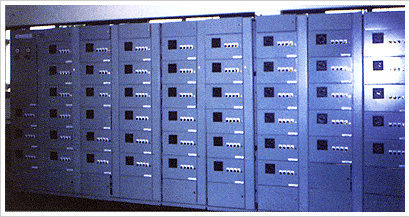

HOME > 사업분야 > 수배전반분야   정격  정격최고전압  (Rated maximum voltage) KV  25.8  7.2/3.6  정격 전압  (Rated nominal voltage) KV  22.9  6.6/3.3  정격 전류  (Rated current) A  600/630,  1200/1250,2000  400,600/630,1200/1250  2000,2500,3000/3150  정격 주파수  (Rated frequency) HZ  60 OR 50  60 OR 50  정격 단시간 전류  (Rated short time current:1sec) KA  12.5, 25  8,12,5,20,25,31,5,40  상용주파 내전압  (Power frequency withstand voltage:1min) KV  50  20(22)/16  뇌임펄스 내전압  (Lightning & switching impulse withstand voltage:1.2 X 50MS) KV  125  60/45  정격 조작 전압  (Rated operating voltage) V  DC110 or 100  DC110 or 100   HV Switchgear (VCB panel) 고압기동반 HV Switchgear (VCB-Main panel)   Load center (ACB Panel)  정격 전압  (Rated voltage) V  600  정격 전류  (Rated short time current) A  630,800,1000/125,  1600,2000,3200,4000  정격 주파수  (Rated frequency) HZ  60 OR 50  정격 단시간 전류  (Rated short time current:1sec) KA  MAX.65  상용주파 내전압  (Power frequency withstand voltage:1min) V  주회로:2000(2200)  제어화로:1500  정격 조작전압  (Rated operating voltage) V  DC110 or 100 Motor control centers   Motor control centers  정격 전압  (Rated voltage) V  600  정격 전류  (Rated short time current) A  수평모션:MAX.4000  수직모션:MAX.630  정격 주파수  (Rated frequency) HZ  60 OR 50  정격 단시간 전류  (Rated short time current:1sec) KA  MAX.65  상용주파 내전압  (Power frequency withstand voltage:1min) V  주회로:2000(2200)  제어회로:1500  정격 조작 전압  (Rated operating voltage) V  DC110 or 100
